For OEM products, the wire harness is often hidden inside the final system, but it has a direct impact on electrical performance, production efficiency, product reliability, serviceability and customer satisfaction. A small issue in connector selection, wire gauge, routing, crimping or testing can create delays or field problems.
That is why OEM wire harness manufacturing should be managed as an engineering and production partnership, not only as a purchasing transaction. The right partner can support design review, component sourcing, prototype samples, production planning, inspection, electrical testing and documentation.
This guide explains what drives OEM wire harness cost, how quality is controlled, how a project moves from prototype to production, and what buyers should prepare before requesting a quote.
Table of Contents
- 1. What Is OEM Wire Harness Manufacturing?
- 2. What Drives OEM Wire Harness Cost?
- 3. From Prototype to Production: OEM Project Workflow
- 4. Quality Controls in OEM Wire Harness Manufacturing
- 5. Supply Chain Stability and Traceability
- 6. Testing, Inspection and Documentation
- 7. What to Send for an OEM Wire Harness Quote
- 8. How Cablum Supports OEM Projects
- 9. FAQ
1. What Is OEM Wire Harness Manufacturing?
OEM wire harness manufacturing is the process of producing custom wire harnesses and cable assemblies for original equipment manufacturers. These assemblies are built according to customer drawings, BOMs, electrical requirements, quality standards and production schedules.
Unlike generic cable assembly production, OEM projects often require design review, component approval, prototype validation, production documentation, change control, traceability and repeatable manufacturing. The supplier must understand both engineering requirements and production realities.
Custom-Built to Application
Each harness is designed around the customer’s product, electrical load, routing space, environment and test requirements.
Engineering and Production Combined
Good manufacturing support includes DFM review, sourcing, samples, process planning, inspection and documentation.
Prototype to Volume Production
OEM projects often move through engineering samples, pilot runs, approval builds and repeatable production.
Quality and Traceability Requirements
Many OEM buyers require process records, material traceability, inspection data and test documentation.
2. What Drives OEM Wire Harness Cost?
OEM wire harness cost is affected by more than wire length. The biggest cost drivers often include connector choice, terminal type, wire gauge, labor complexity, protection materials, tooling, testing requirements and production volume.
Understanding these cost drivers early allows buyers and engineers to make smarter design and sourcing decisions before the project reaches production.
| Cost Driver | What Affects It | How to Control It |
|---|---|---|
| Connector Choice | Brand, availability, MOQ, lead time, terminal type and sealing requirement. | Use DFM review and approved alternatives where allowed. |
| Wire Gauge and Material | Current, voltage drop, flexibility, temperature rating and conductor material. | Size wires correctly and avoid unnecessary overspecification. |
| Labor Complexity | Branch count, labels, taping, connector quantity, routing and assembly sequence. | Simplify layout and use assembly boards for repeatability. |
| Protection Materials | Tape, sleeve, corrugated tubing, heat shrink, grommets, clips and overmolding. | Match protection level to the real environment and routing risk. |
| Testing Requirements | Continuity, open/short/miswire, hipot, insulation resistance, functional tests. | Define test requirements early so they are included correctly in the quote. |
| Tooling and Fixtures | Overmolding tools, assembly boards, crimp applicators, test fixtures and fixtures for inspection. | Review tooling needs before prototype and amortize when production volume supports it. |
| Production Volume | Prototype, pilot run, low volume, high-mix or repeatable OEM production. | Match the manufacturing process to the project stage and expected lifecycle. |
Related Reading
For cost reduction through engineering review, read our Wire Harness DFM Guide and Wire Harness DFM Case Study .
3. From Prototype to Production: OEM Project Workflow
A successful OEM wire harness project usually moves through several stages. Each stage has different goals, risks and documentation requirements.
| Project Stage | Main Goal | Supplier Support |
|---|---|---|
| RFQ and DFM Review | Clarify requirements, sourcing, design risks and cost drivers. | Review drawings, BOM, connectors, wire gauge, protection and testing needs. |
| Prototype Build | Check fit, function, routing, connector choice and assembly process. | Build samples, provide feedback, identify manufacturability issues. |
| Engineering Validation | Confirm electrical performance, installation and design updates. | Support test reports, design changes and component adjustments. |
| Pilot Run | Validate repeatability before full production. | Set work instructions, inspection points, production routing and test process. |
| Production Launch | Deliver stable quality, lead time and documentation. | Manage sourcing, assembly, inspection, testing, packing and production records. |

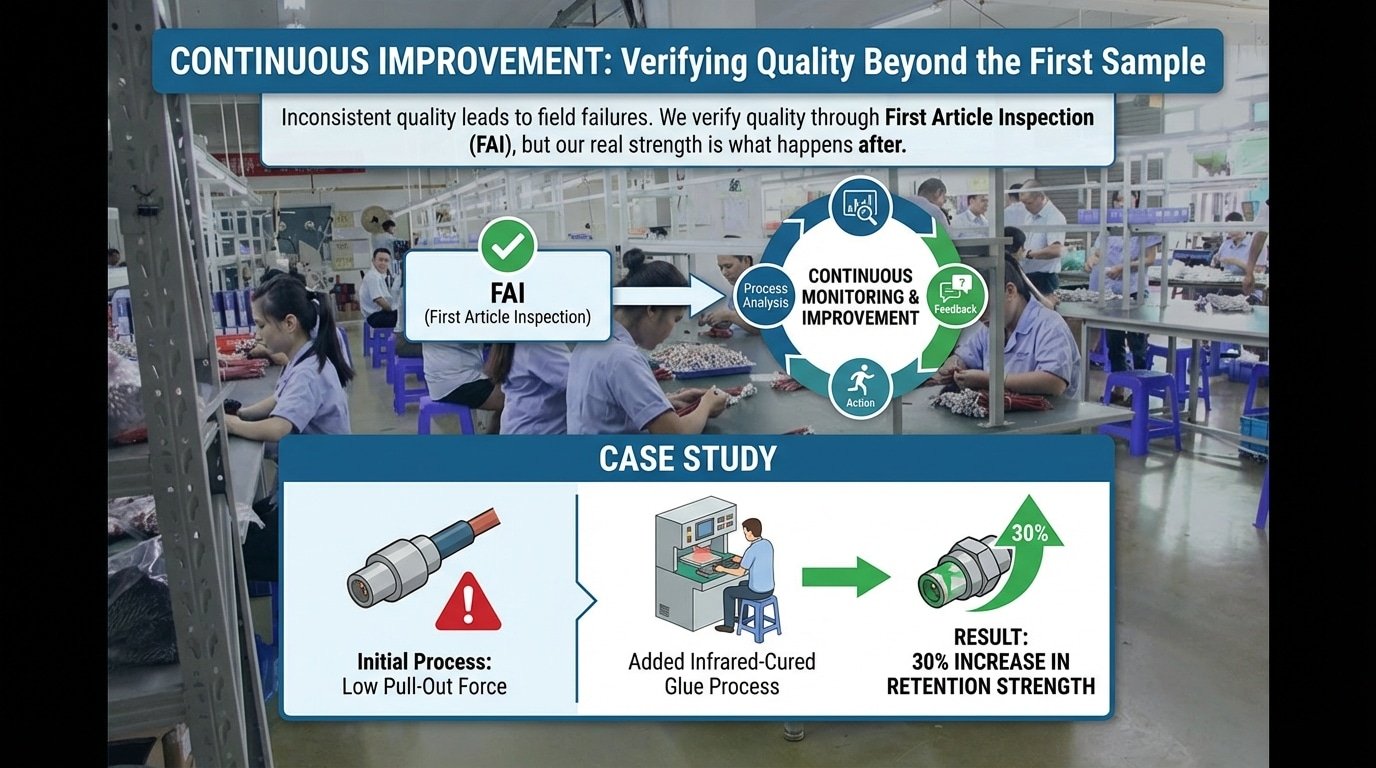

| Continuous Improvement | Reduce recurring issues and improve cost, quality or delivery. | Use feedback, corrective action and process updates where needed. |
4. Quality Controls in OEM Wire Harness Manufacturing
OEM wire harness quality depends on controlled processes at each stage: incoming inspection, cutting, stripping, crimping, connector insertion, routing, taping, assembly, testing and final inspection.
Quality should be planned before production. Buyers should define required tests, inspection reports, acceptance criteria, traceability expectations and customer-specific standards as early as possible.
Incoming Inspection
Checks connectors, terminals, wires, seals, tubing, labels and customer-specified components before production.
Crimp Quality Control
Uses terminal-wire matching, strip length checks, crimp height, pull force and cross-section analysis when required.
Harness Board Assembly
Controls branch length, connector position, label location, routing path and assembly repeatability.
Final Electrical Testing
Verifies continuity, open circuit, short circuit, miswire and project-specific electrical requirements.
Related: Custom Wire Harness Manufacturing Process / Wire Harness Crimping Guide / Terminal Cross-Section Analysis
5. Supply Chain Stability and Traceability
OEM projects often require stable sourcing over many builds. Component shortages, discontinued connectors, unapproved substitutes or inconsistent material quality can affect cost, lead time and product reliability.
A qualified wire harness manufacturer should manage approved sources, component alternatives, incoming inspection, material lots, production batches and customer approval requirements.
| Supply Chain Risk | Possible Impact | Control Method |
|---|---|---|
| Long-Lead Connector | Prototype delay, production shortage or higher inventory cost. | Review lead time early and approve alternates when possible. |
| High MOQ Part | Higher upfront cost or excess inventory. | Review standard parts, equivalent options or staged purchasing plan. |
| Unapproved Substitution | Fit, function, compliance or reliability risk. | Use formal change control and customer approval before substitution. |
| Material Lot Issue | Quality investigation may be difficult without records. | Maintain batch-level traceability for materials and production records. |
| Demand Change | Shortage, excess inventory or delivery instability. | Share forecast and review safety stock strategy for common materials. |
6. Testing, Inspection and Documentation
Testing and documentation should match the product risk and customer requirements. Some OEM harnesses only need visual inspection and electrical continuity testing, while automotive, EV, medical, industrial or safety-related projects may require additional validation.
| Requirement | Examples | When It Matters |
|---|---|---|
| Electrical Testing | Continuity, open, short, miswire, resistance, functional test. | Most custom wire harness and cable assembly projects. |
| High-Voltage Testing | Hipot, insulation resistance, shielding continuity. | EV, battery, charging and other high-voltage applications. |
| Crimp Validation | Pull force, crimp height, cross-section analysis, visual inspection. | Automotive, industrial, high-current or customer-critical circuits. |
| Traceability Records | Material lots, production batches, inspection reports, test records. | OEM, automotive, regulated or audit-sensitive projects. |
| Quality Documentation | FAI, control plan, inspection report, CoC, PPAP-related documents when required. | Projects with customer approval or certification requirements. |
Related: IATF 16949 Automotive Wire Harness Guide / UL Certified Wire Harness Guide
7. What to Send for an OEM Wire Harness Quote
Complete RFQ information helps the supplier quote faster and more accurately. It also helps identify DFM, sourcing, tooling, testing and documentation risks before production.
| RFQ Information | Examples | Why It Helps |
|---|---|---|
| Drawings | 2D drawing, pinout, branch lengths, connector orientation, label position. | Defines the physical and electrical requirements. |
| BOM | Wire, terminals, connectors, seals, clips, tubing, labels, protection materials. | Allows sourcing and component compatibility review. |
| Electrical Requirements | Voltage, current, signal type, resistance, shielding, grounding, test requirements. | Supports correct wire, terminal, connector and test planning. |
| Application Environment | Automotive, EV, industrial, outdoor, medical, heat, moisture, vibration, abrasion. | Helps select protection, sealing and material options. |
| Production Plan | Prototype quantity, pilot build, annual volume, target price, schedule. | Helps determine process, tooling, sourcing and inventory planning. |
| Quality Requirements | Inspection standard, certification, traceability, FAI, PPAP, CoC, customer documents. | Ensures quality and documentation costs are included properly. |
8. How Cablum Supports OEM Projects
Cablum supports OEM customers with custom wire harness and cable assembly manufacturing, from early design review to prototype builds and repeatable production.
DFM and Cost Review
Review drawings, BOM, connectors, wire gauge, tolerances, protection materials and tooling risk.
Prototype and Pilot Builds
Support engineering samples, installation review, validation builds and pre-production planning.
Production and Quality Control
Support cutting, stripping, crimping, assembly, taping, electrical testing and final inspection.
Traceability and Documentation
Support material records, test reports, inspection documentation and customer-specific requirements.
Need an OEM Wire Harness Manufacturing Partner?
Send us your drawing, BOM, connector list, quality requirements, target quantity and production schedule. Cablum can help review cost, manufacturability, sourcing, testing and production readiness.
