Custom OBD2 & OBD-II

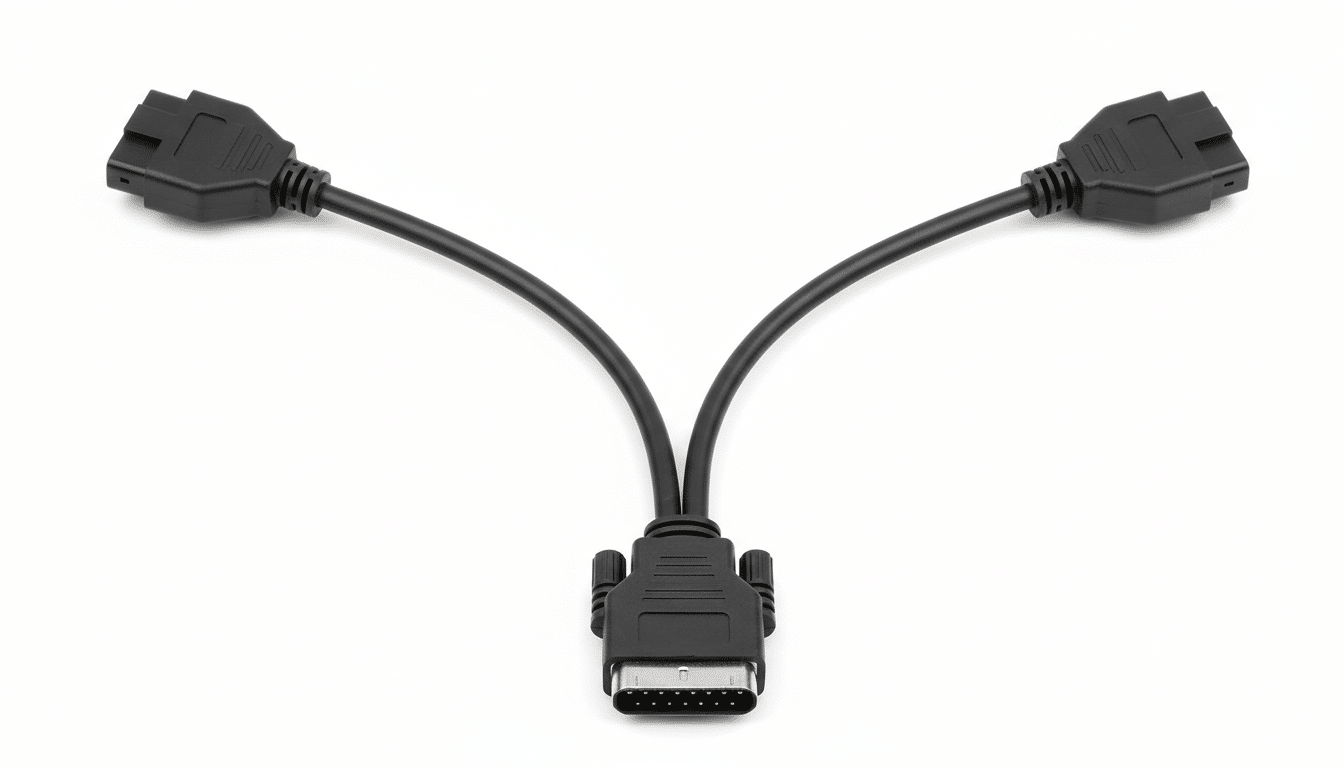

Y-Splitter Cable Assembly
High-durability J1962 Male to Dual Female splitter for telematics and fleet management. Cablum manufactures custom OBD2 cable assemblies from customer-approved drawings, connector requirements and pinout maps. Full 16-pin pass-through and project-specific mapping options can be reviewed before quotation.
Note: Pinout and manufacturability review scope is confirmed for each project.
Technical Specifications

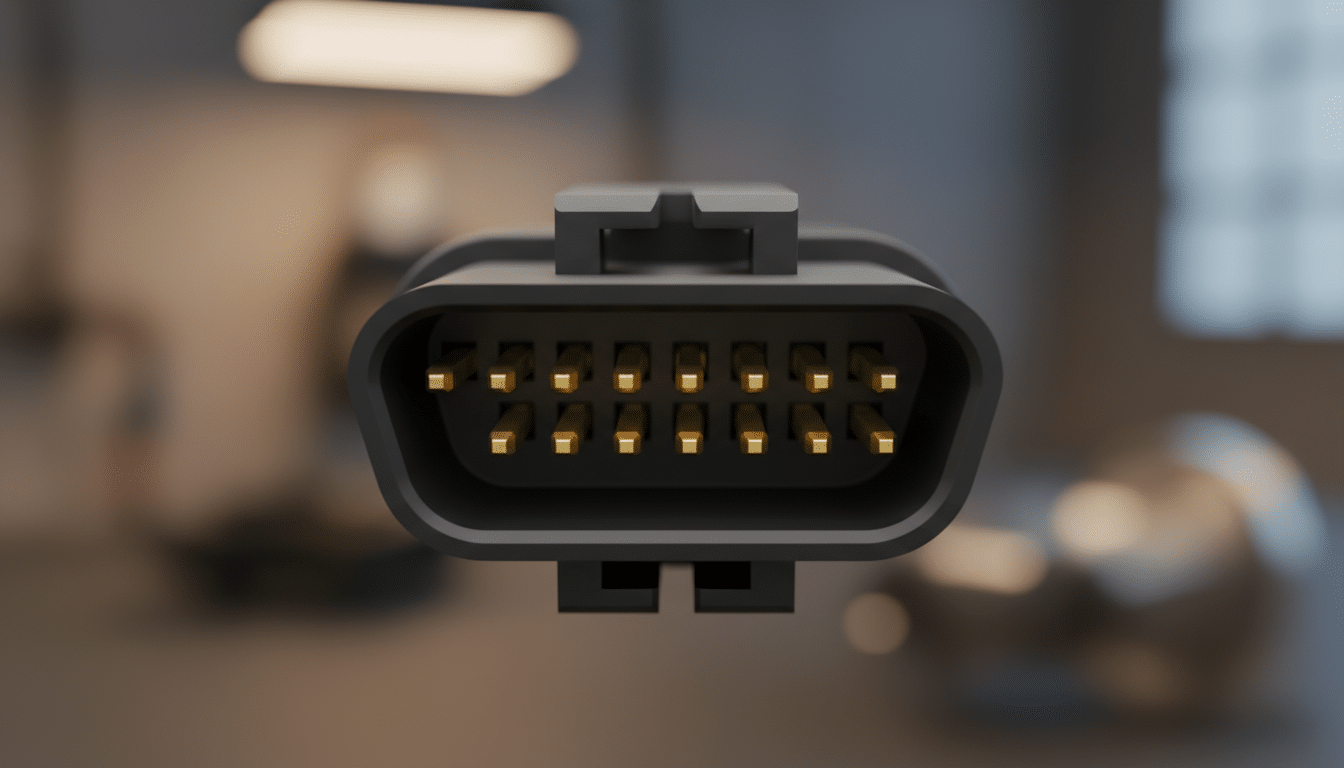

| Connector A | OBD-II Male (SAE J1962), Right Angle / Straight / Slim Profile |
|---|---|
| Connector B | Dual OBD-II Female, or Custom (DB9, Molex, Open End) |
| Wire Gauge | 24/26 AWG (Signal) + 20/22 AWG (Power/Ground) |
| Voltage Rating | 12V / 24V DC options, subject to circuit and connector review |
| Cable Jacket | PVC (Standard), TPE/PUR (Rugged), or Braided |
| Operating Temp | Material- and component-dependent; confirm by project |
| Pinout | Customizable (1:1 Pass-through or Custom Mapping) |
Common Applications
Fleet Telematics (ELD)
Installing GPS trackers while keeping the OBD port open for diagnostics.Diagnostic Tuning
Connecting multiple scanners or HUDs (Heads-Up Displays) simultaneously.Engineer Resources

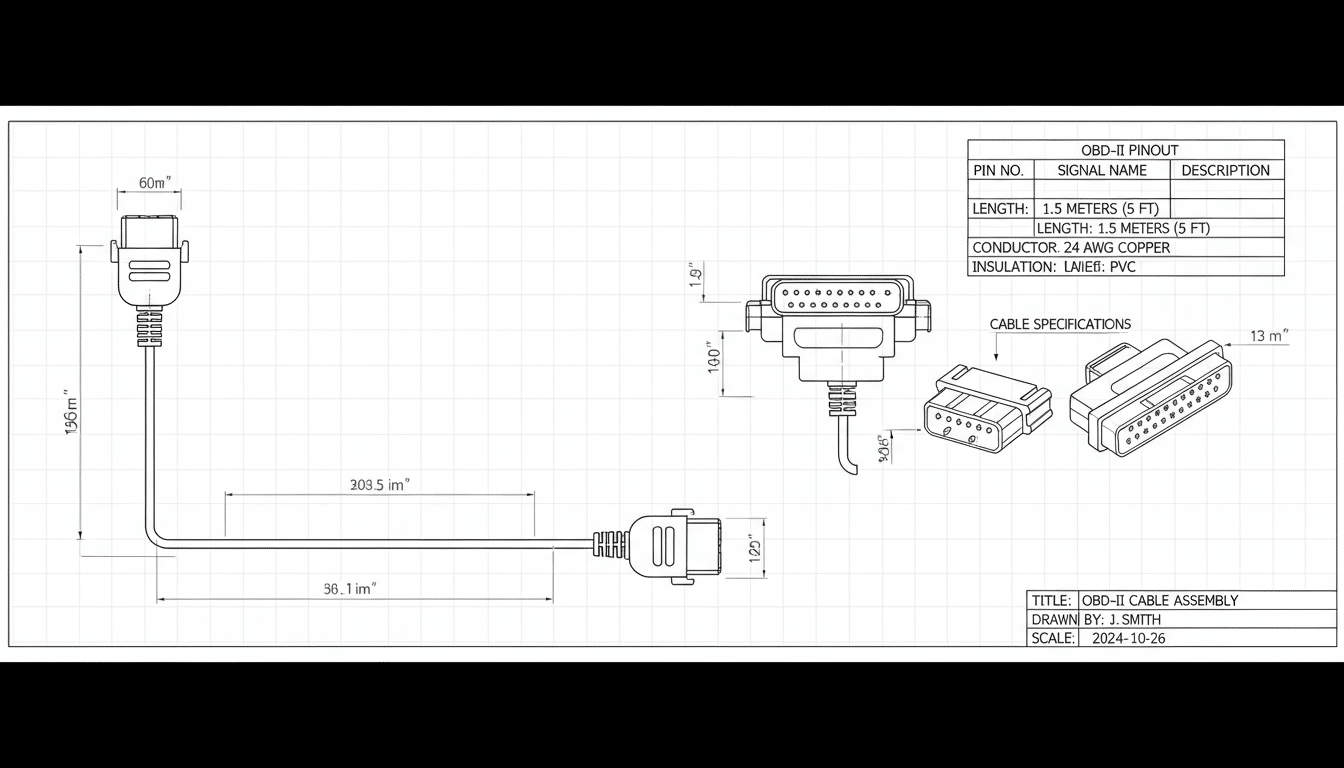

Reference drawings and available 3D models can be supplied after the connector, orientation and pinout requirements are confirmed.
Need a Custom Pinout?

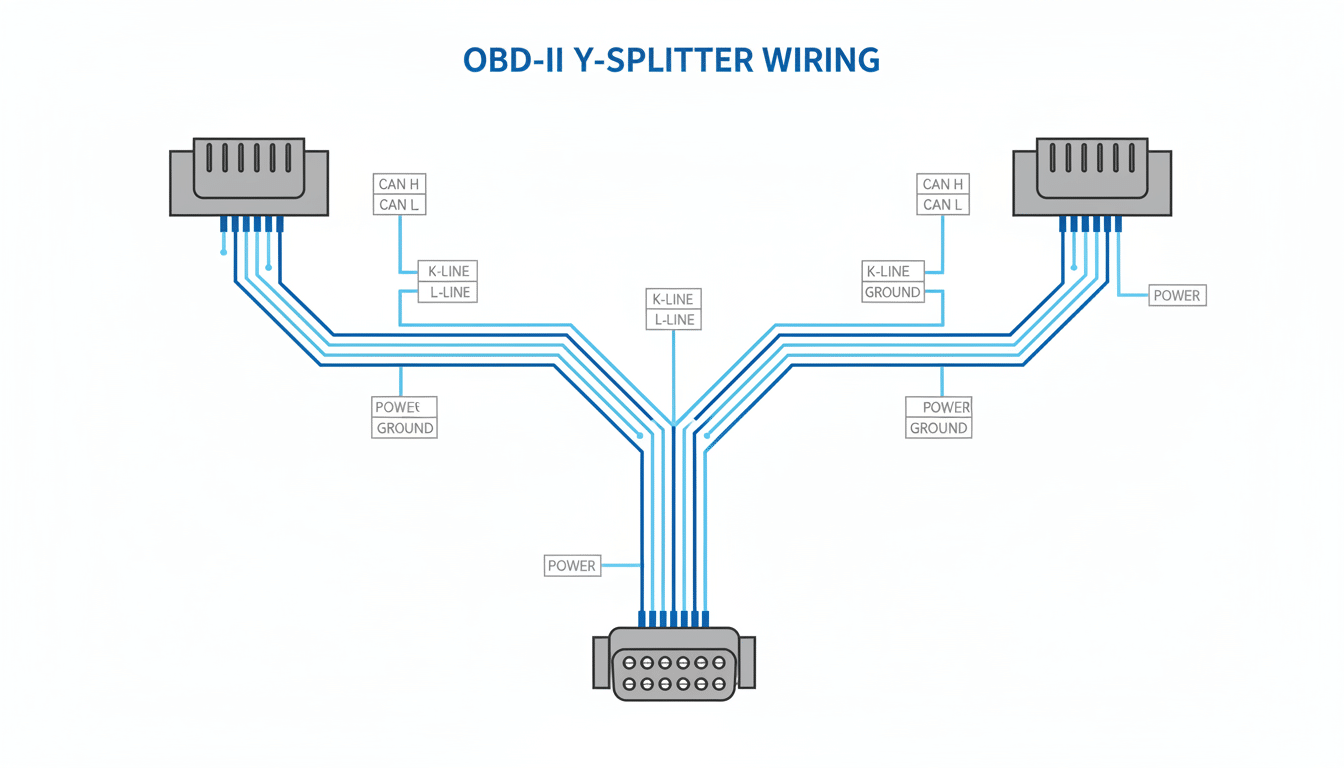

Project-specific pin mapping can be reviewed from your wiring diagram, mating-interface details and approved connector list.
- Custom Cable Lengths
- 90° Left/Right Angles
- Logo Printing Available
Custom OBD2 Cable Assembly Questions
Confirm the interface, pinout and validation basis before requesting an OBD-II splitter cable quotation.
Can an OBD-II splitter use a custom pinout?
Yes. Pass-through and project-specific mappings can be reviewed from the customer drawing. Power, ground, communication circuits and unused positions should be identified before quotation.
Which connector and cable details are needed?
Provide the mating interface, connector orientation, branch length, wire gauge, jacket requirements and pin-to-pin connection table. See our wire harness drawing checklist.
Can alternative materials be considered?
Only when permitted by the customer. Specified and alternative components should be controlled through the BOM and approval process. Review our materials and components guidance.
How is an OBD2 cable assembly inspected?
Inspection can include visual checks, dimensional verification and electrical testing according to the agreed project scope. See our quality testing capabilities.
Ready to Start Your Project?
From prototype review to production, inspection and documentation requirements are defined against the approved drawing, BOM and project specification.
