Industrial Automation
Wire Harness Manufacturer
Cablum manufactures industrial automation wire harnesses and custom cable assemblies from customer drawings, BOMs and application requirements. Flexing, oil exposure, vibration, connector sealing and electrical test criteria are reviewed for each machine or robotics project.
Built for Harsh Environments
Industrial automation harnesses may require PUR or TPE jackets, controlled routing, shielding and overmolded strain relief. Ingress-protection targets and environmental resistance must be defined and verified for the selected connector, cable and assembly design.
High-Flex Life
Flex-life targets are reviewed against bend radius, travel, speed and cycle conditions.
Ingress Protection Review
Overmolding and sealing options are selected according to the required test method.
Chemical Resistant
Material compatibility is reviewed against specified oils, coolants or cleaning agents.
Vibration & Retention Review
Connector locking and strain relief are defined for the vibration and routing conditions.
Industrial Wire Harness Capabilities
Every machine wiring harness is built to the approved drawing and project requirements. Need help defining the inputs? Review our engineering and prototyping process or send your drawing for review.
| Wire Gauge Range | Conductor size and current requirements reviewed from the approved drawing and circuit definition |
|---|---|
| Rated Voltage | Selected according to wire rating, connector rating, circuit design and applicable project requirements |
| Operating Temperature | Temperature range confirmed from the selected wire, connector, seal and application environment |
| Jacket Materials | PVC, PUR, TPE, XLPE, PTFE — including oil-, coolant- and abrasion-resistant grades for machine environments |

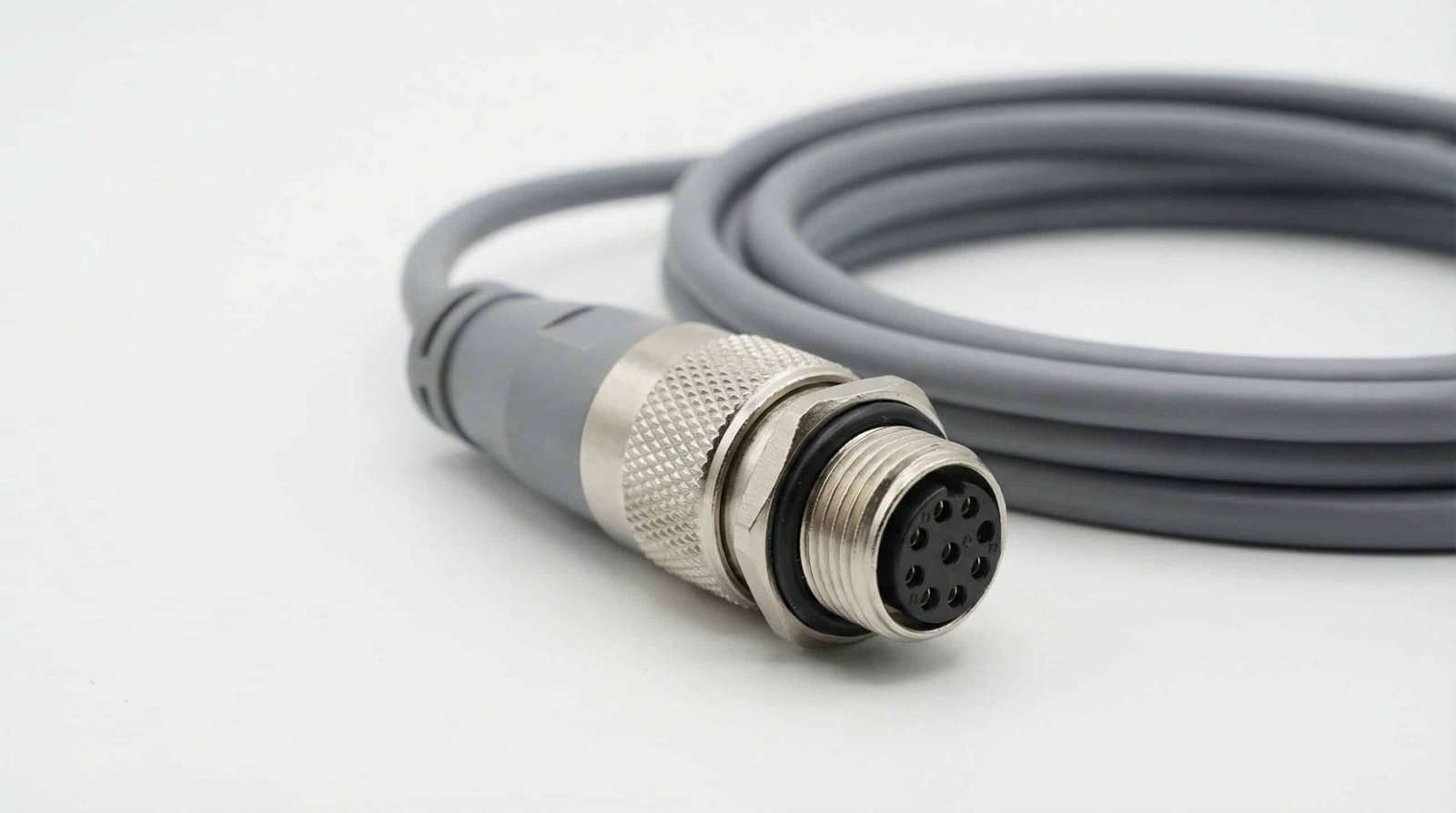

| Connector Systems | M8/M12 and other circular, rectangular or board-level connector systems reviewed against the approved interface and part number |
| Flex Life (Drag Chain Series) | Cycle target, bend radius, travel, speed, fixture and electrical monitoring defined by the customer-approved test plan |
| Workmanship & QMS | Workmanship class and quality documentation applied when specified and agreed for the project |
| Testing | Continuity, polarity, dielectric, pull-force, environmental or flex testing selected according to the agreed inspection plan |
Machine Wiring Harness Solutions by Equipment Type
From the control cabinet to the moving axis, we build the in-machine wiring harnesses and equipment cable assemblies that keep production lines running.
CNC & Machine Tool Wire Harnesses
Machine tools combine servo power, spindle drives, encoder feedback and dense sensor I/O in an environment soaked in cutting oil and coolant mist. We build control-cabinet-to-axis harnesses with oil-resistant PUR jackets, 360° shielded servo and encoder cables to suppress EMI near VFDs, and M12/M23 circular interconnects that survive continuous vibration on the machine frame.
Packaging & Processing Machinery Harnesses
High-speed equipment can place repeated movement and switching demands on sensors, valves and actuators. We supply pre-wired M8/M12 quick-disconnect sensor cabling, valve manifold harnesses and multi-branch equipment wire harnesses that simplify machine assembly and field service — with overmolded sealing options where hygiene or moisture requirements are defined.
Robotics & AGV Wire Harnesses
Multi-axis robots and AGVs subject cables to combined torsion and linear flexing that destroys standard wiring. Our high-flex drag chain harnesses use finely stranded conductors, optimized twist pitches and TPE/PUR jackets, with validation criteria defined by the customer-approved test plan. For AGVs we also build battery power harnesses and CAN bus communication assemblies.
Test & Inspection Equipment Cable Assemblies
Measurement and inspection systems demand signal integrity above all. We manufacture low-noise shielded assemblies, precision board-level harnesses using JST and Molex Micro-Fit connectors, and internal wiring harnesses routed for minimal crosstalk — with workmanship requirements applied according to the customer-approved specification.
Industrial Application Example
Example considerations for demanding industrial automation projects.
High-Flex Robotic Wire Harness Assembly
Example engineering approach for reviewing cable fatigue, overmolded strain relief and drag-chain routing in a robotics application.
Discuss Similar Project →Featured Industrial Interconnects

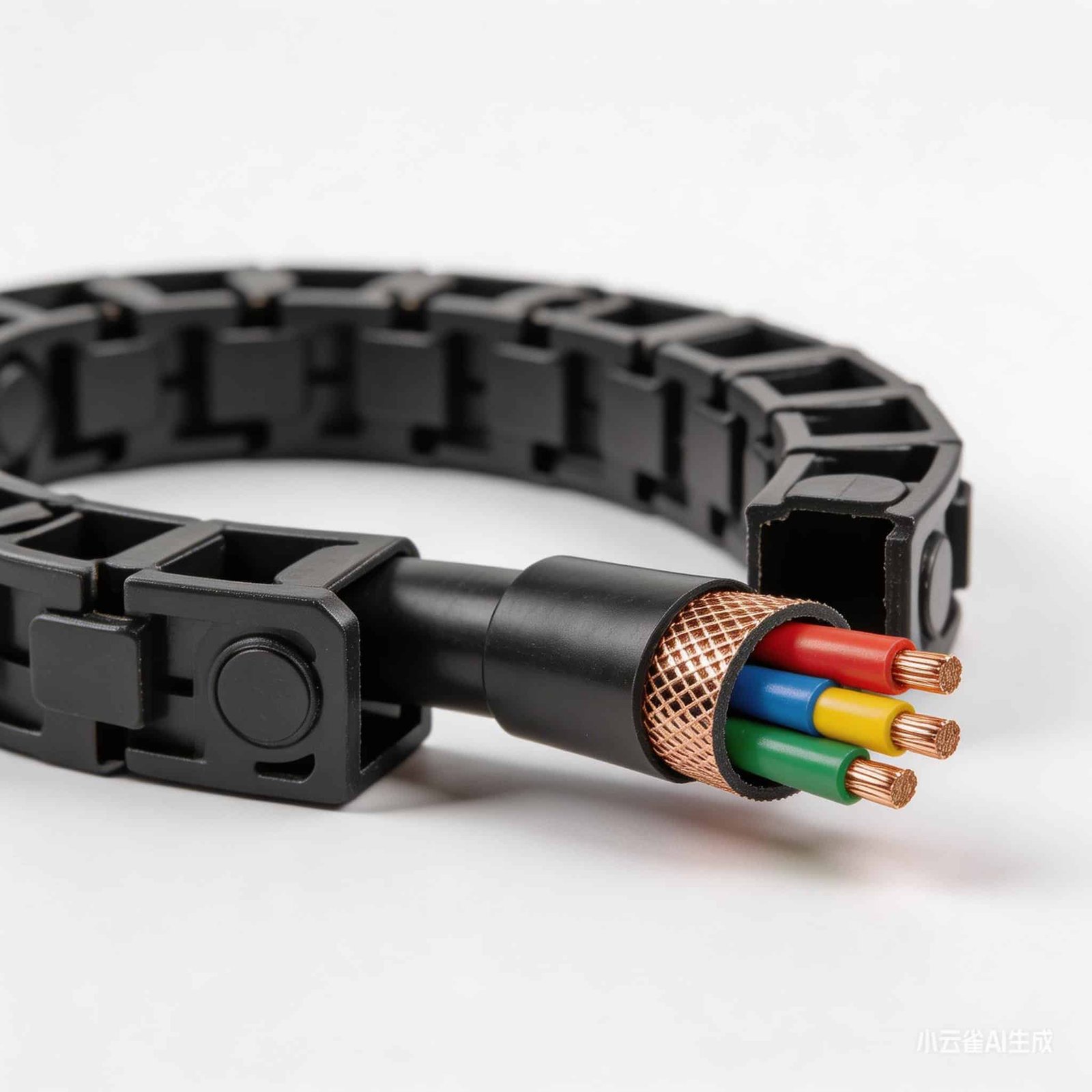

High-Flex Drag Chain Cable
TPE/PUR jacket options. Flex criteria defined by project.
Discuss Your RequirementsFrequently Asked Questions
Engineer Your Next Industrial Project
Send your drawing, BOM and operating requirements. Our team will review routing, flexing, connector, material and inspection inputs before quotation.
