Medical Equipment
Cable Assembly & Wire Harness Solutions
Cablum provides custom cable assemblies, sensor cables, micro coax assemblies and wire harness solutions for diagnostic equipment, patient monitoring devices, laboratory instruments and precision electronic systems.
Reliable Cable Solutions For Medical Equipment Applications
Medical equipment often requires compact wiring, stable signal transmission, flexible materials and consistent assembly quality. Cablum supports engineering teams with custom cable assembly manufacturing based on customer drawings, BOM files and technical specifications.
Engineering Note: Materials, connectors and cable structures can be selected according to customer-specified requirements and application conditions.
Cable Assemblies For Medical Equipment
We support cable assembly projects for medical-related electronic equipment where reliability, compact design and stable signal transmission are important.
Diagnostic Equipment
Cable assemblies for imaging, diagnostic instruments and electronic modules.
Patient Monitoring
Sensor cables, signal cables and flexible interconnects for monitoring equipment.
Laboratory Devices
Custom cable assemblies for analytical, test and laboratory equipment.
Therapy Equipment
Power, signal and control cable assemblies for therapy and treatment equipment.
Custom Interconnect Solutions For Medical Equipment
Cablum supports customized cable assemblies based on customer drawings, BOM files, connector requirements and application specifications.
Sensor Cable Assembly
Customized sensor cable assemblies for monitoring and electronic equipment.
- Signal transmission
- Flexible cable options
- Custom connector integration
Micro Coax Cable
Fine wire and micro coaxial cable solutions for compact electronic systems.
- Compact structure
- Low-noise signal support
- High-density connection
Shielded Signal Cable
Shielding options for applications requiring stable signal performance.
- EMI shielding options
- Twisted pair structure
- Custom cable lengths
Overmolded Cable
Custom overmolding for strain relief, protection and ergonomic cable design.
- Strain relief
- Connector protection
- Custom shape design
Built Around Customer Specifications
Medical equipment projects often require specific cable materials, connector brands, shielding structures and mechanical designs. Cablum manufactures assemblies according to customer-defined requirements and application conditions.
Cable Materials
PVC, TPU, TPE, silicone, FEP/PTFE options based on customer specification.
Connector Options
Customer-specified connectors, terminals and contact systems.
Shielding Design
Foil, braid and twisted-pair design options for signal applications.
Ergonomic Design
Flexible cable structures and overmolded shapes for user-facing equipment.
Process Control For Reliable Cable Assemblies
Quality is controlled through incoming material checks, process inspection and final testing before shipment.
Incoming Inspection
Materials, connectors and components are checked against customer requirements before production.
Process Inspection
Crimping, soldering, assembly and overmolding processes are monitored during production.
Final Testing
Finished assemblies can be verified through visual inspection, continuity testing and customer-specific checks.
General Cable Assembly Options
Final design and materials are selected based on customer specifications.
| Item | Available Options |
|---|---|
| Cable Types | Signal cable, sensor cable, data cable, power cable, micro coax cable |
| Materials | PVC, TPU, TPE, silicone, FEP/PTFE options according to customer requirements |
| Shielding | Foil shielding, braided shielding, twisted pair design options |
| Connectors | Customer-specified connector brands and terminal systems |
| Protection | Overmolding, strain relief, cable sleeving and connector protection options |
| Testing | Visual inspection, continuity testing and customer-specific inspection requirements |
Medical Equipment Cable Assembly Examples
Examples of cable assembly types that can be customized according to customer drawings, BOM files and application requirements.

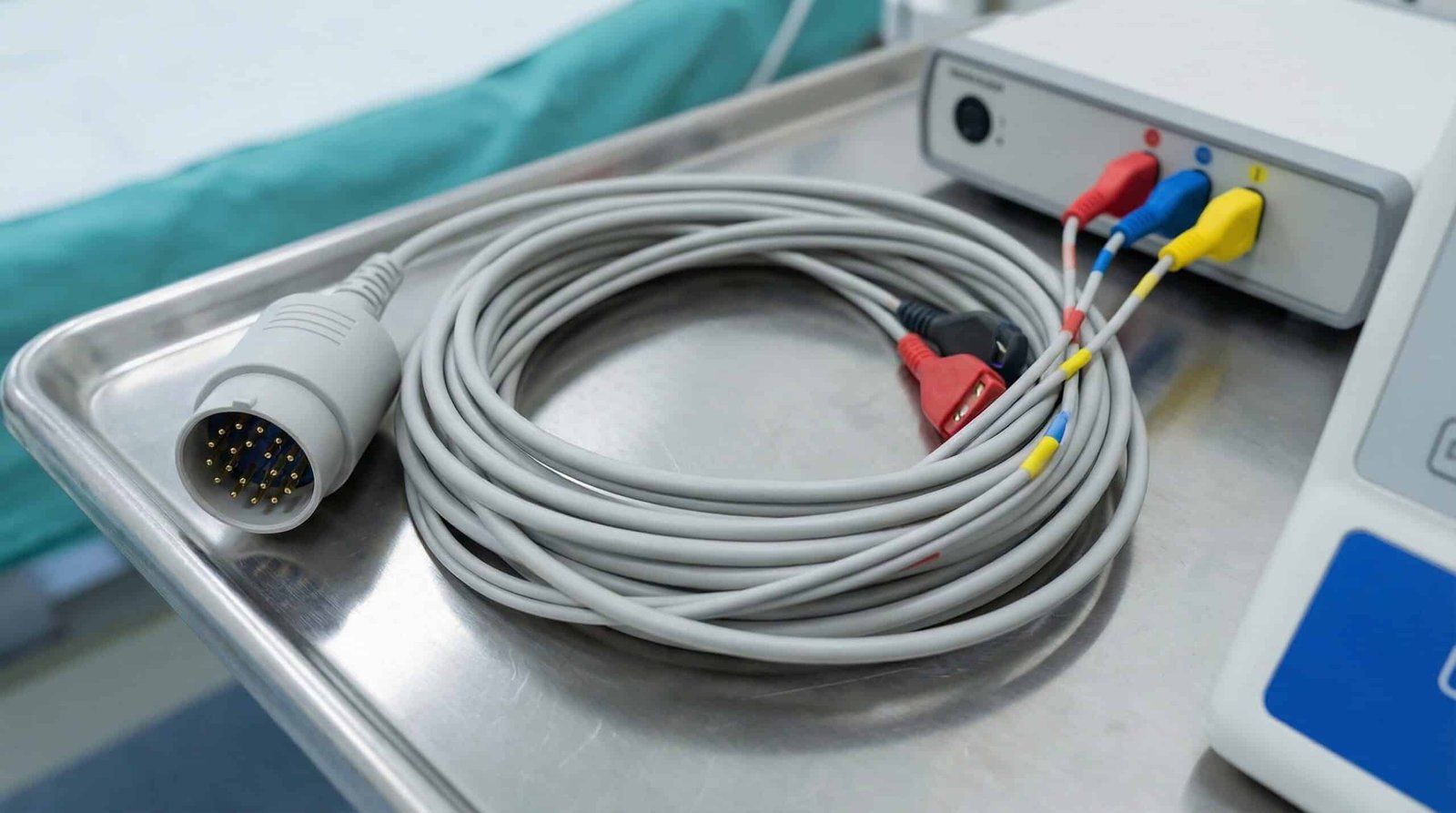

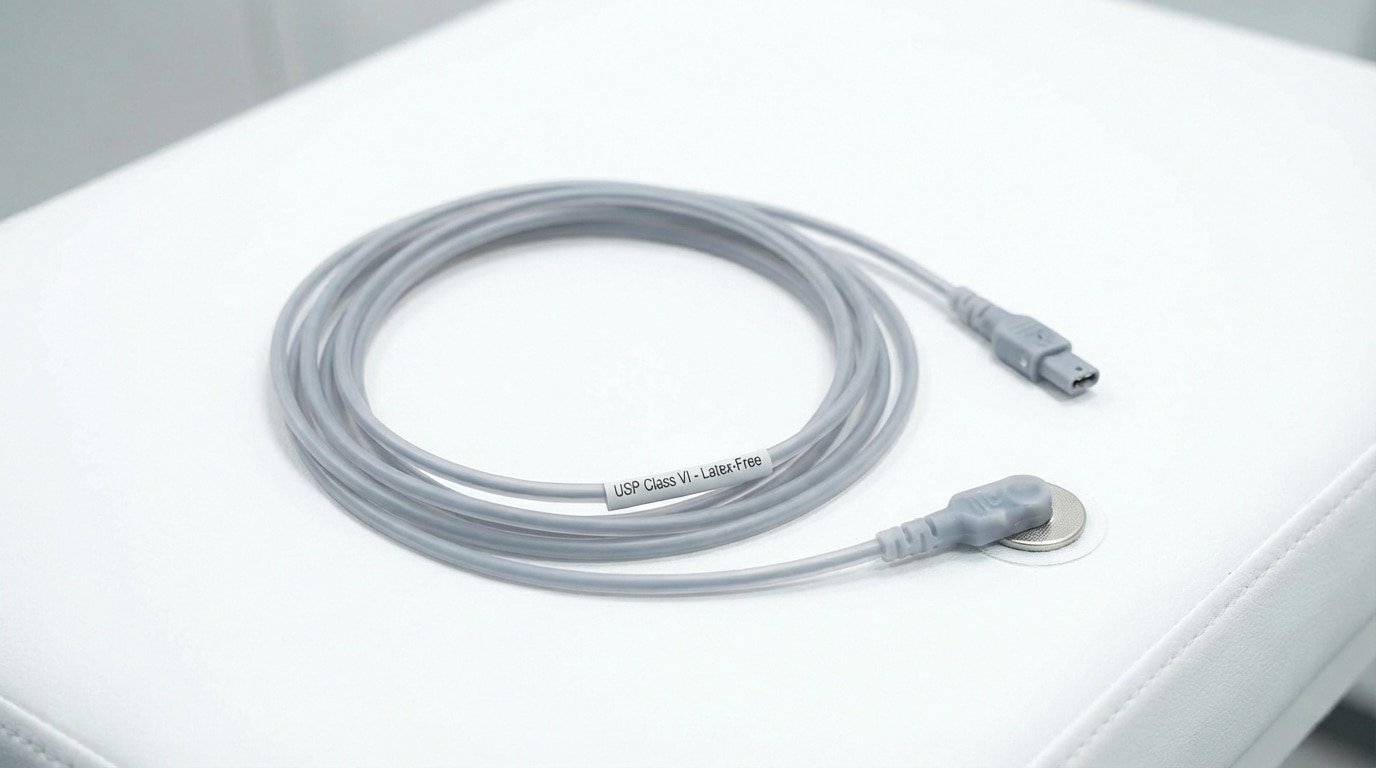

Sensor Cable Assembly
Customized cable assemblies for monitoring equipment, sensor modules and signal transmission applications.
- Flexible cable options
- Customer-specified connectors
- Shielding options available

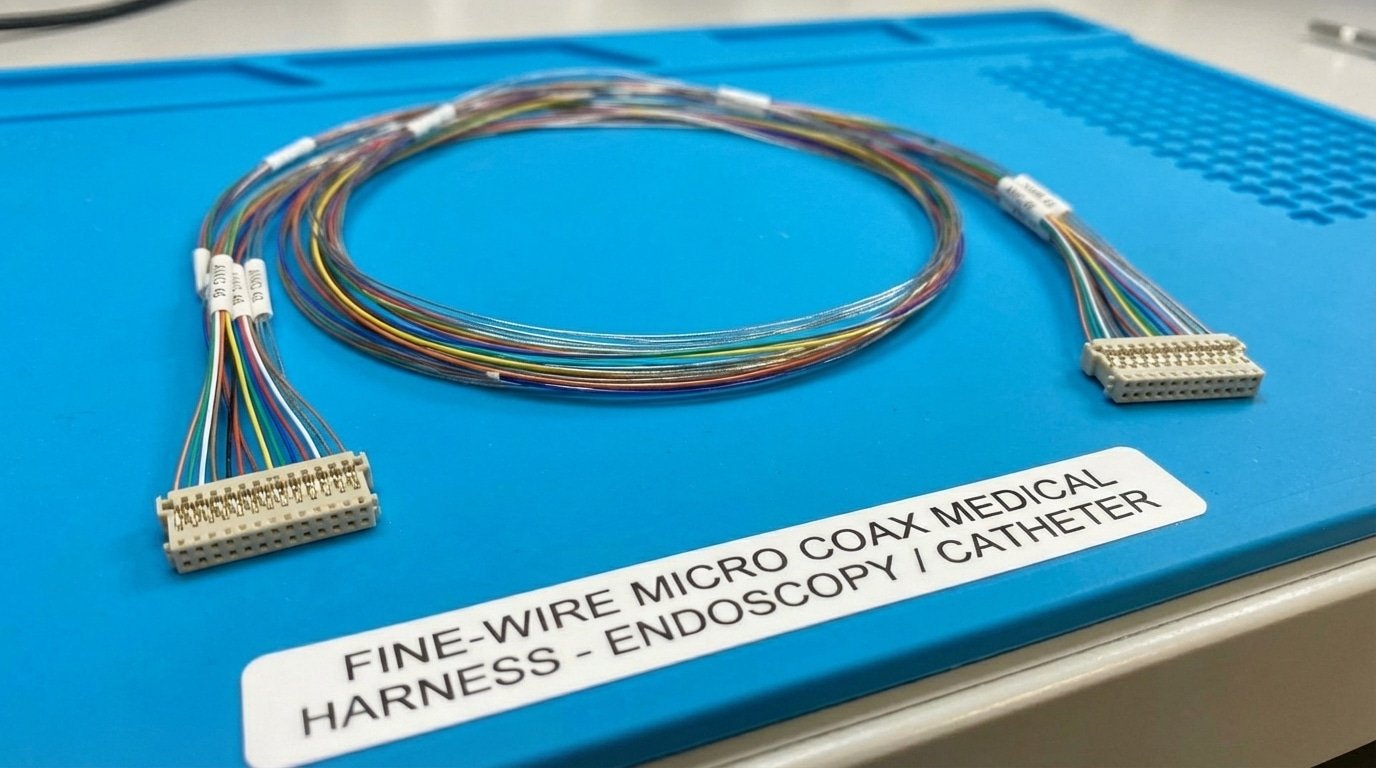

Micro Coax Cable Assembly
Fine wire and micro coaxial cable assemblies for compact electronic systems and precision equipment.
- Compact cable structure
- High-density termination support
- Low-noise signal design options
Overmolded Equipment Cable
Custom overmolded cable assemblies for improved strain relief, cable protection and user handling.
- Custom molded shape
- Strain relief design
- Connector protection
Shielded Signal Cable
Custom signal cable assemblies with shielding options for electronic equipment applications.
- Foil / braid shielding options
- Twisted pair design
- Custom connector integration
See Our Cable Assembly Process
Watch our wire processing, crimping, assembly, overmolding and inspection workflow.
Medical Equipment Cable Assembly FAQ
Need A Custom Cable Assembly For Medical Equipment?
Send us your drawing, BOM, connector requirements or project specifications. Our engineering team will review your application and recommend a suitable cable assembly solution.
