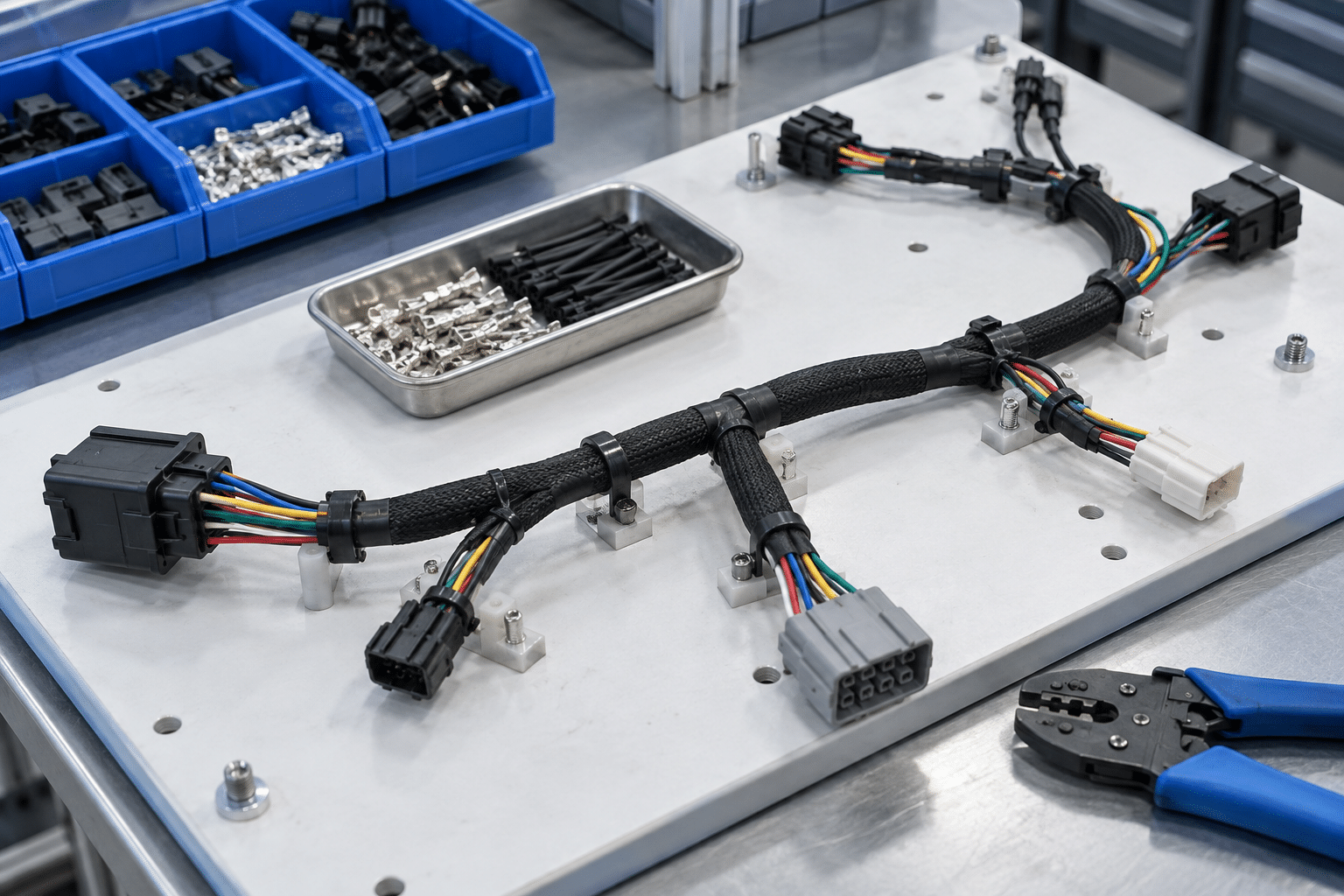

Wire harness assembly
Manufacturing support for customer-specific wire harness assemblies, including branch layout, connector integration, labeling and protective covering requirements defined by the project.
Cable Harness Assembly Services for OEM Projects
Cable Harness Assembly Services
Cable Harness Assembly Services for OEM Projects
Cablum manufactures customer-specific wire harnesses and cable assemblies based on approved drawings, BOMs, specifications and project requirements. Use this service review to define the manufacturing scope, separate customer approvals from assembly activities, and agree what must be ready before production.
- Custom wire harness assemblies
- Custom cable assemblies
- Prototype and production support
- Project-defined inspection
Service Scope
Customer-specific harness and cable assembly manufacturing
Cablum supports OEM projects that need assemblies built to customer-approved requirements rather than off-the-shelf cable products. The exact construction, components, test scope and documentation are confirmed during project review.
Cable assembly support
Custom cable assemblies can be produced according to customer drawings, electrical needs, selected components and approved acceptance requirements.
Prototype to production support
Prototype and production support are available based on project requirements, component availability and the confirmed inspection plan.
Define the project handoff
Agree the assembly scope before placing an order
The following is a discussion checklist, not a standard package of included services. Record the agreed responsibilities in the quotation and approved project documents.
| Project item | Customer input or approval | Assembly review and agreed output |
|---|---|---|
| Design baseline | Identify the drawing and BOM revision, pinout, dimensions and application requirements. | Review manufacturability questions and resolve missing or conflicting requirements before release. |
| Components | Specify approved part numbers and whether alternatives are permitted. | Confirm component availability and any proposed substitutions for customer approval; do not assume equivalents are accepted. |
| Prototype approval | Define what the sample must demonstrate: fit, routing, connector orientation or another agreed criterion. | Agree the sample quantity, review method and approval needed before the next build stage. |
| Inspection and records | State required tests, acceptance limits and records to accompany delivery. | Confirm feasible checks and documentation scope in the quotation. Additional testing is not automatically included. |
| Production changes | Issue a controlled revision when design or component requirements change. | Review the effect on materials, work instructions, inspection and delivery before implementing the change. |
For the manufacturing process overview, see Cablum capabilities. For product types, see wire harness and cable assembly products.
Assembly Workflow
A practical process for OEM cable harness assembly projects
The sequence may vary by design, but most projects move through engineering review, material confirmation, prototype build, process setup, assembly and final inspection.
- 1
Review drawings and BOM
Confirm drawings, pinouts, component requirements, quantities, application needs and acceptance criteria.
- 2
Confirm components
Review customer-specified wires, terminals, connectors, protection materials and labels for the project.
- 3
Build samples or prototypes
Prepare prototype assemblies when required so the customer can review fit, routing and workmanship before repeat production.
- 4
Set assembly controls
Define work instructions, routing notes, labeling requirements and inspection points based on the approved design.
- 5
Assemble harnesses
Carry out wire preparation, crimping, ordinary soldering where specified, sleeving, heat-shrink, labeling and final assembly within the approved scope.
- 6
Inspect and release
Perform project-defined inspection and electrical testing according to customer-approved requirements before shipment.
RFQ Preparation
Assembly service quotes depend on complete technical inputs
Clear drawings and BOM data help reduce quote delays, avoid connector or wire mismatches and define the right inspection scope. If a sample is available, Cablum can review it where applicable, but samples should not replace approved production requirements.
Helpful preparation pages:
Information that improves quote accuracy
- Target application and operating environment
- Connector, terminal and wire specifications
- Length, tolerance, branch and routing requirements
- Labels, sleeves, heat-shrink and protection requirements
- Prototype and production quantities for review
- Electrical test and inspection requirements
Quality and Inspection
Inspection scope is defined by the approved project requirements
Cablum applies quality control during manufacturing. Electrical testing and inspection are defined according to customer specifications and the agreed project plan.
Manufacturing checks
Quality checks during manufacturing can cover workmanship, labels, coverings, connector condition and other agreed control points.
Electrical checks
Electrical testing is project-defined and should be confirmed during quotation, including any applicable continuity requirements.
Documentation boundaries
Special documentation, named standards, exact test methods or certification scope should be confirmed before quotation when mandatory.
FAQ
Questions about cable harness assembly services
What is a cable harness assembly service?
It is manufacturing support for customer-specific wire harnesses or cable assemblies built from approved drawings, BOMs, component requirements and inspection criteria.
Can Cablum work from a sample?
Cablum can review sample references where applicable, but production requirements should still be confirmed through drawings, specifications or customer-approved documentation.
Does every assembly include the same test?
No. Electrical testing and inspection are defined according to project requirements. Required checks should be included in the RFQ package.
Can Cablum support both prototypes and production?
Yes. Cablum provides prototype and production support based on project requirements, with feasibility reviewed according to components, tooling and inspection scope.
What should an OEM buyer send for a quote?
Send drawings, wiring diagrams or pinouts, a BOM, component requirements, quantities, labels, protection details and any required electrical or inspection criteria.
Discuss Your Assembly Project
Need a custom cable harness assembly quote?
Send your drawing, BOM, quantity and inspection requirements. Cablum will review the project information and confirm the next practical steps.
